Trucks

Volvo FL
Specifications

Everything you need to know about the Volvo FL, in glorious detail.

Chassis

Find specifications about chassis heights, max front axle load, rear suspension, coupling heights, tractors, chassis features and brakes.

Chassis heights



 Height
Lowapprox 810–830 mm
Medapprox 860 mm
Highapprox 950 mm
X-Highapprox 960 mm
XX-High*approx 1175 mm

* Only for Volvo FL 4×4

Max front axle load (tonnes)

 AirLeaf
Low4.0/4.5 t4.2
Med 4.5/5.0/5.8 t
High 5.0/5.6/5.8/6.3 t
X-high7.1 t7.1/7.5 t
XX-high 5.6 t

Rear suspension



TypeSuspensionAxle LoadReduction
RAD - L80Leaf11.5tSingle
RAD - KRAir13tSingle
RAD - A2VAir10.5tSingle

Towbars

Towbars for connecting trailers are avaialble.

Fuel tanks

Fuel tanks

Fuel tanks are available in plastic, steel or aluminium. Fuel volume varies from 80 to 300 litres. In addition, there is a combination of two 215-litre tanks available, providing a total volume of 430 litres.

AdBlue tanks

The AdBlue tank is made of plastic and the volume is 32 litres. The AdBlue pump is integrated in tank module. There is one variant for vehicles with right-hand mounted fuel tank (ADTP-R), and one for vehicles with left-hand mounted tank (ADTP-L).



Brakes

The Volvo FL has pneumatic brakes with ventilated discs both front and rear. The EBS (Electronically controlled Brake System) anti-locking disc-brake system provides both faster and safer braking response and promotes reduced brake wear. The system includes features such as ABS, anti-locking brakes, a differential lock and Brake Blending. With Brake Blending, the system exploits the vehicle’s various brakes for more uniform brake application and reduces wear on the wheel brakes and tyres. The extended EBS package includes a function that facilitates starting on slopes. The brake discs are available in different sizes depending on the application.

EBS Medium
In addition to the EBS Standard package, EBS Medium adds the following features:

Hydraulic retarder for AL306 gearboxes
The compact, integrated hydraulic retarder (RET-HYDR and RET-TPT variants) is mounted on the gearbox. The max effect is 400 kW.

Maximum ratio in the torque converter (TC421) is 1.77:1.

EBS Status Control
EBS status monitoring via the TEA2+ vehicle electronic system and Volvo Tech Tool.

Hill Start Aid
The brakes are only released once there is sufficient engine torque to propel the vehicle forward.

Lining Wear Analysis
Brake lining warning – calculates the remaining mileage available with the current brake linings. (Only for disc brakes.)

Automatic Parking Brake Release
The parking brake is released when the driver pushes the accelerator pedal and a gear is selected.




Additional options

In addition to the program packages there are the following options:

ESC (Electronic Stability Control)
The brake stability system applies the brakes individually on each wheel, thereby providing stability for the entire vehicle combination and counteracting jack-knifing, rollover and trailer swing. ESC fulfils the legislation of Electronic Vehicle Stability Control, and is available for 2- and 3-axle vehicles.
Emergency Brake Light
When panic braking from speeds above 50 km/h, the brake lights flash with four flashes per second.
 Hydraulic retarder
Gearbox-mounted compact retarder with a max effect of 440 kW.


Powertrain

Find specifications about engines, transmissions, rear axles (including ratios), powertrain combinations and power take-offs.

Engines



D5K

D8K

Emission standardEuro 6Euro 6

No. of cylinders

4

6

Displacement

5.1 dm³

7.7 dm³

Stroke

135 mm

135 mm

Bore

110 mm

110 mm

Compression ratio

17.5:1

17.5:1

Economy revs

1100–1800 r/min

1000–1700 r/min

Exhaust braking effect (2800 r/min)

80 kW

120 kW

Engine brake effect (2800 r/min)

170 kW

Oil filters

1

1

Oil change volume, incl. filter

15 l

20 l

Cooling system, total volume

13 l

17 l



Oil change interval
Up to 100,000 km, or once every two years with VDS5.

Fuel prerequisites
EN 590 (EU norm) max 10 ppm sulphur.

Engine-mounted power take-off
Ratio 1:1, up to 600 Nm torque output both when driving and standing still.

Biodiesel version
The D5K240 is also available in a Biodiesel (B100) version, certified for Euro 6. For information about service intervals, please contact your Volvo dealer.




Engine-Mounted Power Take-Off

 Torque outputRatio
PTER-DIN600 Nm*1:1
PTER-1400600 Nm*1:1
PTER-100600 Nm*1:1


* torque output both when driving and standing still. With AT2412 max. torque while driving = 150 Nm.

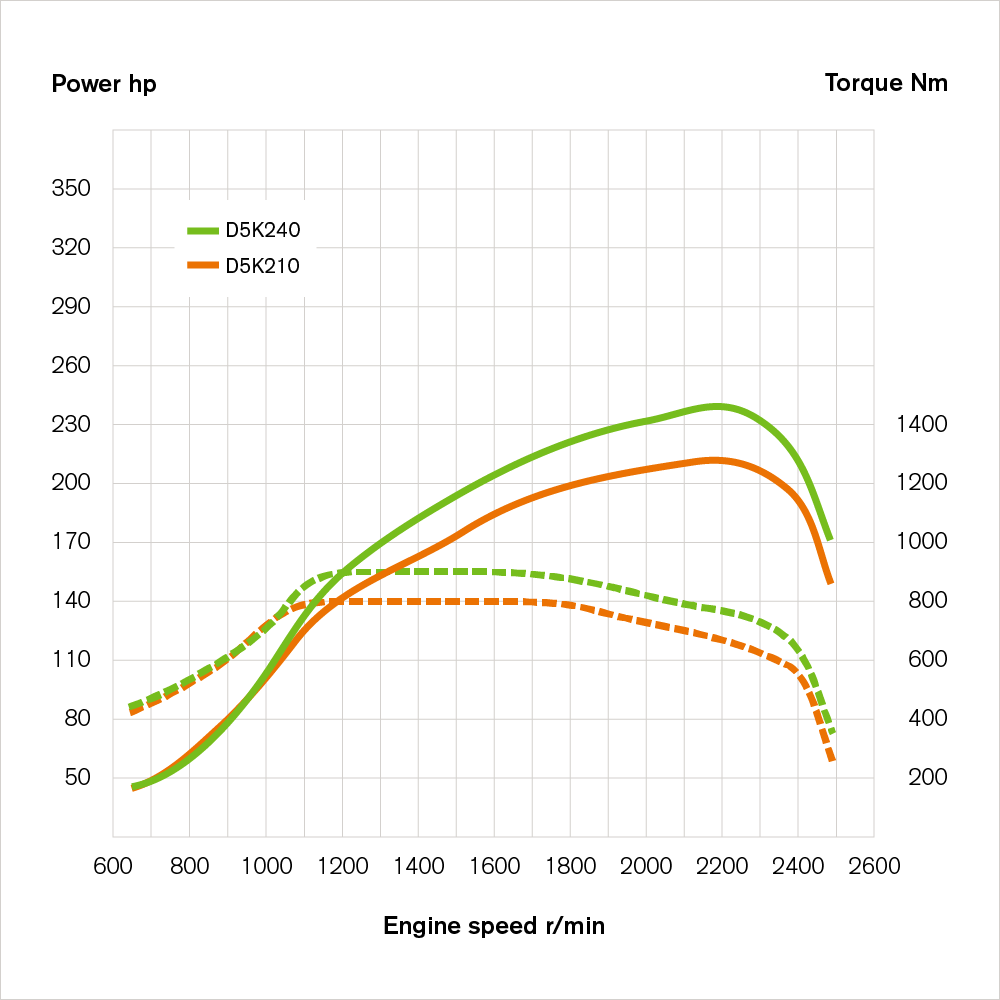

D5K – Euro 6power/torque

Net output according to: EC 582/2011



Engine D5K – power/torque

Net output according to: EC 582/2011

D5K210 (154 kW)



Max power at 2200 r/min

210 hp

Max torque at 1100–1700 r/min

800Nm

D5K240 (177 kW)



Max power at 2200 r/min

240 hp

Max torque at 1200–1600 r/min

900 Nm

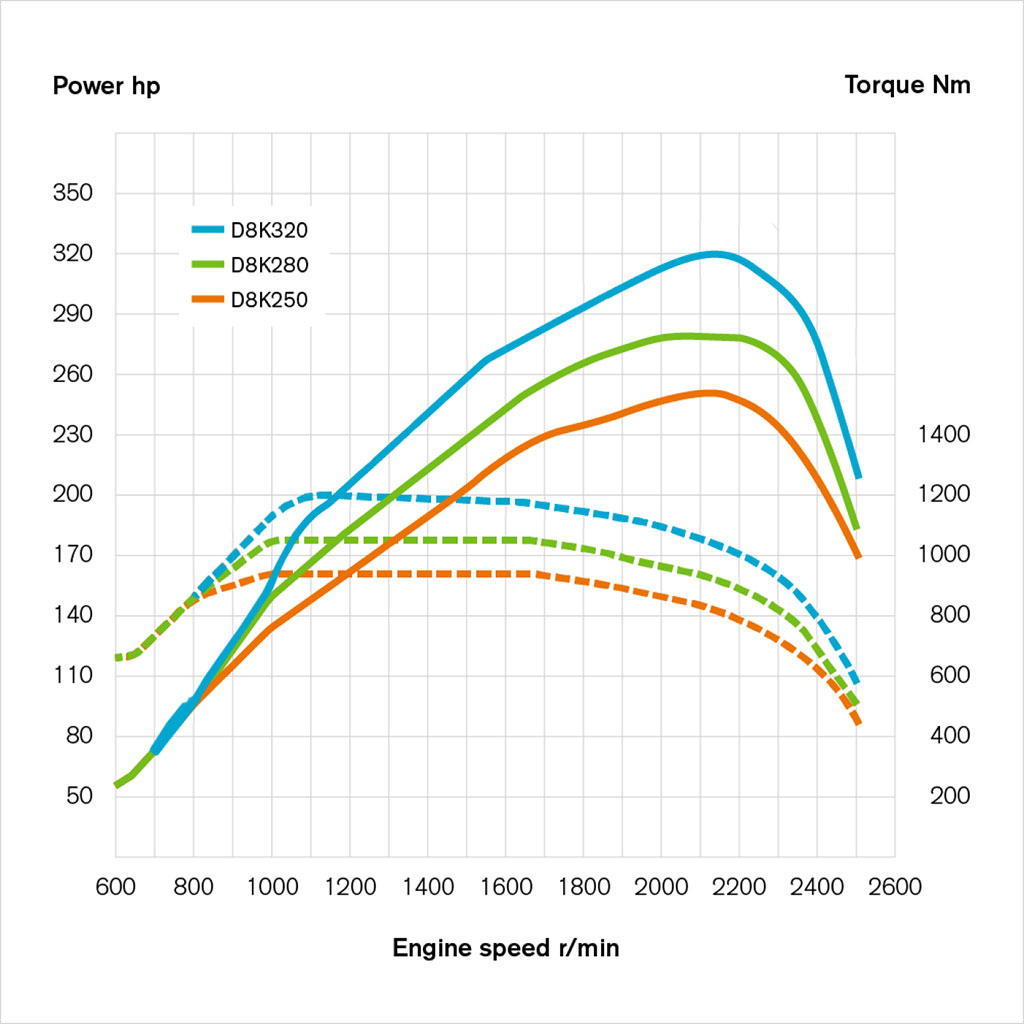

D8K – Power/Torque

Net output according to: EC 582/2011



D8K - Power/torque

Net output according to: EC 582/2011

D8K250 (184 kW)



Max power at 2100 r/min

250 hp

Max torque at 900–1700 r/min

950 Nm

D8K280 (206 kW)



Max power at 2100 r/min

280 hp

Max torque at 950–1700 r/min

1050 Nm

D8K320 (235 kW)
Max power at 2100 r/min320 hp
Max torque at 1050–1600 r/min1200 Nm

Manual Gearboxes

The manual gearboxes are operated with servo assistance. The short gear lever, which is integrated into the instrument panel, is vibration-free and gear lever movement is short and crisp. The gearboxes can be specified with a power take-off.

TypeTop gearMax torque (Nm)GCW approval (tonnes)
ZTO10066105032.5
ZTO110991200\44
STO8006685024



Automatic Gearboxes

6-speed automatic gearbox or 8-speed automatic gearbox with three drive modes.

Type

Top gearMax torque (Nm)GCW approval (tonnes)
AL3066160036
8AP12008120036



Rear axles

Type

Axle

Gear

Max torque (Nm)

Max axle/bogie load
(tonnes)

GCW approval (tonnes)

Single reduction











RSS0819A

Solo

Hypoid

950

8.5

19

RSS1125A

Solo

Hypoid

1050

11.5

25

RSS1132A

Solo

Hypoid

1050

11.5

32.5

RSS1344C

Solo

Hypoid26001344

Hub reduction











RSH1140C*

Solo

Hypoid

1200

11

40

* Only for Volvo FL 4×4




Rear axle ratios

RSS0819A

RSS1125A

RSS1132A

RSH1140C

RSS1344C

3.31:1

3.58:1

3.78:1

5.86:1

3.70

3.58:1

3.73:1

4.13:1

6.31:1

4.11

3.73:1

3.90:1

4.50:1



4.63

3.91:1

4.11:1

5.14:1



5.29:1

4.10:1

4.33:1

5.67:1



6.17:1

4.30:1

4.63:1

6.17:1





4.56:1

4.88:1







4.88:1

5.13:1







5.13:1

5.29:1







5.29:1

5.57:1







5.57:1

5.86:1







5.86:1











Powertrain combinations

 D5K210D5K240D8K250D8K280D8K320
Gearboxes
8AP1200
AL306
STO8006
ZTO1006
ZTO1109
Single reduction axles
RSS0819A
RSS1125A
RSS1132A
RSS1344C
Hub reduction axles
RSH1140C

Power take-offs

There is a wide range of clutch-independent and clutch-dependent power take-offs to drive all sorts of body equipment.



Engine-mounted

Gearbox-mounted

PTER-DIN
Rear-mounted engine power take-off for direct drive of a hydraulic pump.
PTER1400
Rear-mounted engine power take-off with flange connection for hydraulic pump.
PTER100
Rear-mounted engine power take-off with flange connection for hydraulic pump.
PTR-HF/FH/ZF
Connecting flange attachment and low-rev or high-rev.
PTR-HP/PH/ZF
Connecting pump attachment and low-rev or high-rev.




Cab

Find specifications about cab measurements, cab heights above the ground and cab features




Day cab

Day cab with comfortable and ergonomic driver area. Interior height 1605 mm.


Short sleeper cab

Short sleeper cab offers extra space that can be equipped with a bed for one person or be used as office space with extra storage compartments. Interior height 1605 mm.


Crew cab

Crew cab with ample space for several additional passengers up to 7 persons. Interior height 1605 mm.




Cab suspension
The front of the cab has rubber cushion suspension for minor vertical movement while the rear has coil spring and shock absorber suspension.
Cab heating
The cab heating system is available in two variants: manually controlled with heater only, or manually controlled heater and air conditioning. There’s also a 2 kW parking heater system available that can be specified as an option.
Cab colours
Available in 300 fixed variants. Additional colours can be ordered.
Interior storage
The cab has many practical and easily accessible compartments for storage of documents and personal belongings. Above the windscreen you'll find two storage units protected by a lid or net, as well as four DIN compartments. A number of different storage and tunnel boxes, writing pad and clothes hooks can be specified as options.
Driver’s seat
Three different levels of comfort: Comfort, Standard and Economy. All three feature backrest, length, height and front tilt adjustment and integrated headrests.
Horns
There’s a choice of two extra horn types – either two roof-mounted horns, pneumatically operated, or one electrical horn under the front lid.
Passenger seat
Three different levels of comfort: Standard, Economy or Basic.
Bed (comfort cab)
The bed is offered in one or two pieces and is either 580 millimetres or 780 millimetres wide. There’s an optional bed protection bar and a smoke detector.
Beds
The bed is offered in one or two pieces and is either 580 mm  or 780 mm wide. There’s an optional bed protection bar and a smoke detector.

Interior storage
The cab has many practical and easily accessible compartments for storage of documents and personal belongings. Above the windscreen you'll find two storage units protected by a lid or net, as well as four DIN compartments. A number of different storage and tunnel boxes, writing pad and clothes hooks can be specified as options.

Roof hatch
The cab can be equipped with a roof hatch that can be opened 50 millimetres. The hatch can be manually or electrically operated.

Steering wheel
The steering wheel has a diameter of 460 or 500 millimetres, depending on truck configuration, and can be pneumatically adjusted to the desired position

Climate system
The cab heating system is available in two variants: manually controlled with heater only, or manually controlled heater and air conditioning. There’s also a 2 kW parking heater system available that can be specified as an option.

Seat upholstery
Comfort textile.

Wall upholstery
Comfort textile.



Data sheets

Data - everything you'll need. Download data sheets in PDF format for the Volvo FL from the following links.

  • FL Rigid
FL Rigid
